JLG 2632ES Electric Scissor Lift
Twenty-six feet of electric reach. Slim 32-inch profile for narrow-access facilities.
26-ft narrow-mast electric scissor lift. 32-inch width, 500 lb capacity, 24V DC drive. JLG SmartLoad overload alert, tilt alarm, indoor-rated.
- 26 ft platform height (32 ft working height)
- 500 lb platform rated capacity
- 32-inch overall width — narrow-aisle and doorway access
- Zero-emission 24V DC electric — indoor approved
- JLG SmartLoad Technology — pre-overload alert system
- Tilt alarm and motion alarm standard
- Dual front-wheel drive for smooth repositioning
- ADE (Automatic Drive Enhancement) terrain-sensing drive
✓ In Stock — Ships in 5-10 business days
| Model | 2632ES |
| Drive System | 24V DC electric, dual front-wheel |
| Manufacturer | JLG Industries |
| Overall Width | 32 inches (0.81 m) |
| Platform Size | 94" × 29" (2.39 m × 0.74 m) |
| Certifications | ANSI/SAIA A92.20, CE EN 280, CSA |
| Machine Weight | 3,300 lbs (1,497 kg) |
| Working Height | 32 ft (9.75 m) |
| Battery Runtime | 8 hours (typical) |
| Max Drive Grade | 25% |
| Platform Height | 26 ft (7.92 m) |
| Platform Capacity | 500 lbs (227 kg) |

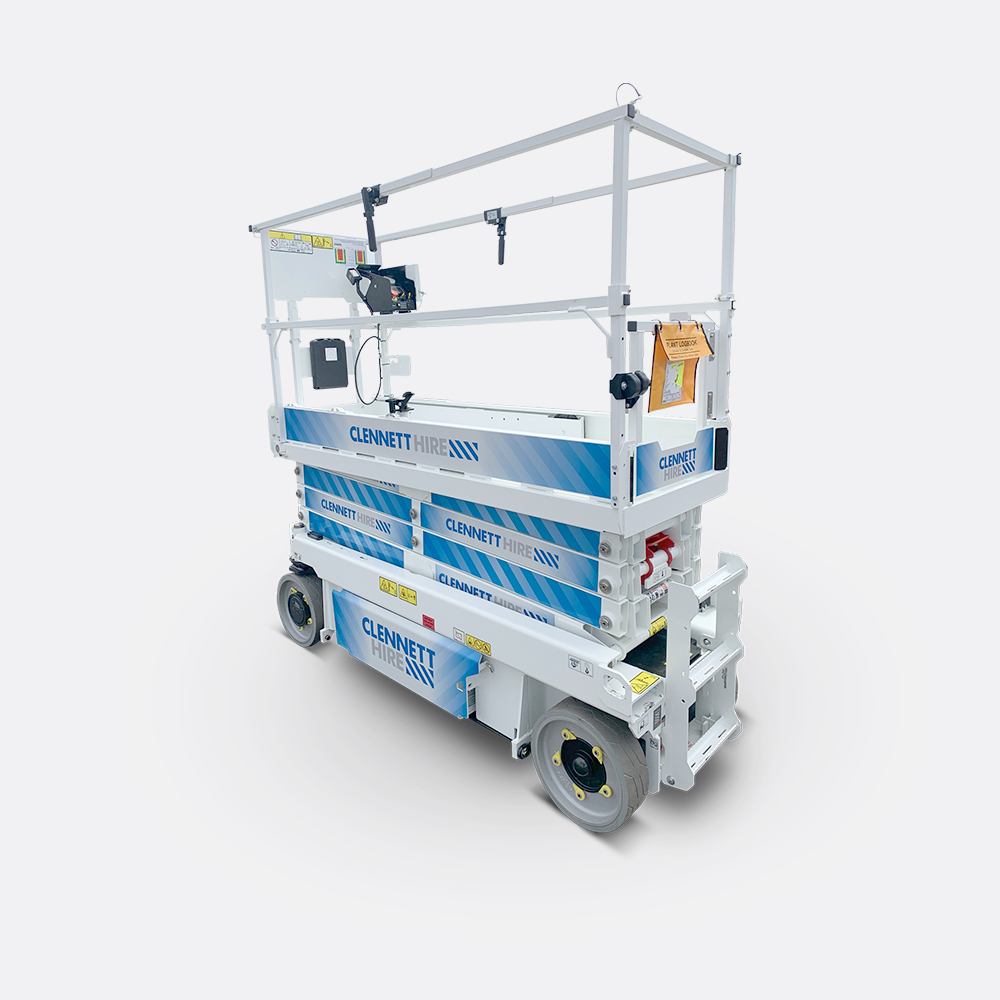

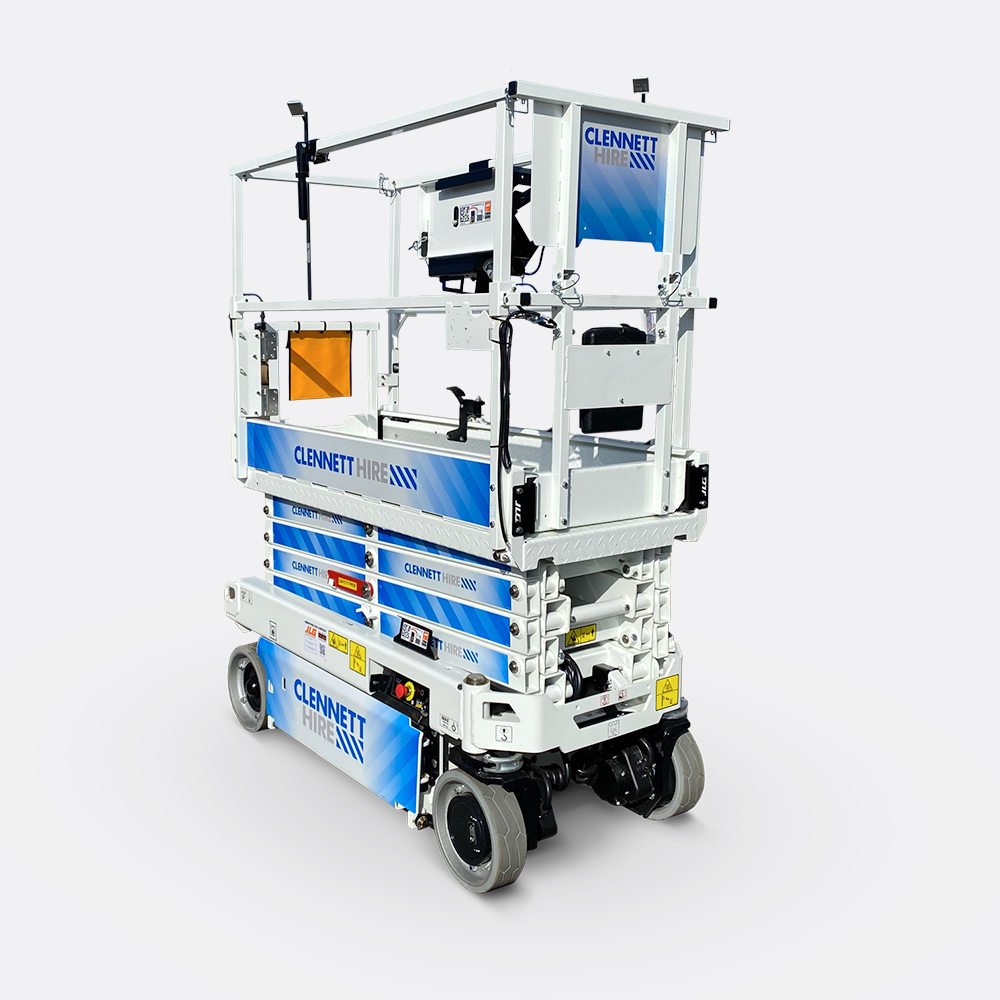

Multi-angle views of the JLG 2632ES Electric Scissor Lift. Click any image to zoom.
See this class of lift in action. The video below shows installation, real-world operation, and the kind of shop this lift belongs in.
⚙️ Pothole Protection Bar
A mechanical bar extends outward from the platform's lower edge when elevated above 6 feet. If the machine approaches a floor opening, drop-off, or dock edge, the bar contacts the hazard before the wheel reaches it — automatically halting drive before a tip-over can occur. Non-defeatable by the operator.
🔒 Outrigger Interlock (RT Models)
Rough-terrain models cannot raise above a set height unless all four outriggers confirm positive ground contact. The interlock is mechanical — not software-only. A single outrigger without firm contact blocks elevation above the threshold, preventing elevation on an unstable base.
🛡️ OSHA-Compliant Platform Guarding
Full-height (43 in) guardrails with mid-rail and toe board meet OSHA 1926.502 and ANSI/SAIA A92.20 fall protection requirements. The self-closing entry gate uses a positive slam-latch that cannot be accidentally kicked open. Platform D-ring anchor for personal fall arrest (on most models).
📊 Load Management System
On-board sensors monitor platform weight continuously. Overloading locks out the lift function and displays a fault code — the machine will not raise until load is reduced to within rating. This protects the scissor mechanism from overload and prevents the stability limit from being exceeded.
How does this compare?
At 26 feet, the 2632ES and Genie GS-2632 are the two dominant narrow-width scissor options. JLG differentiates with SmartLoad Technology — an active overload alert rather than a passive hydraulic cutoff. The ADE terrain-sensing system also modulates drive power in real time, reducing jerkiness on polished floors. For users needing to move between buildings via freight elevator, the 32-inch width is the deciding spec.
