Tommy Gate G2-Series 2200 Tuckaway Liftgate

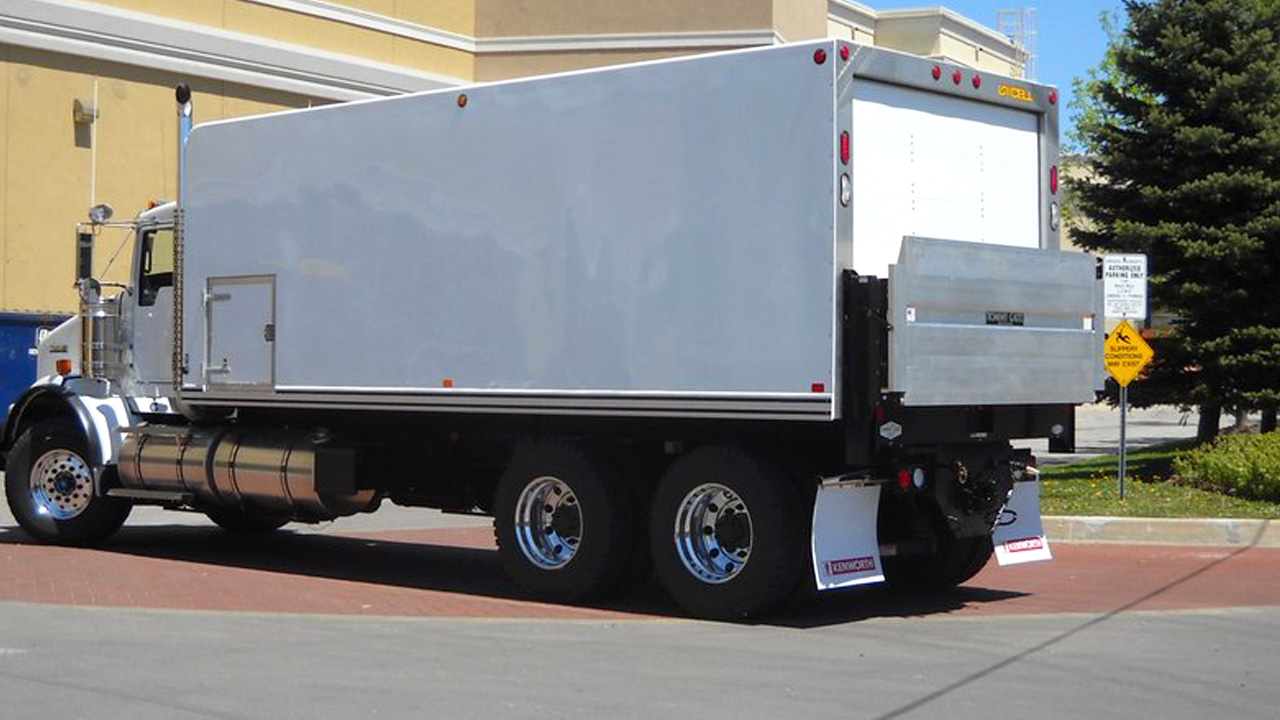

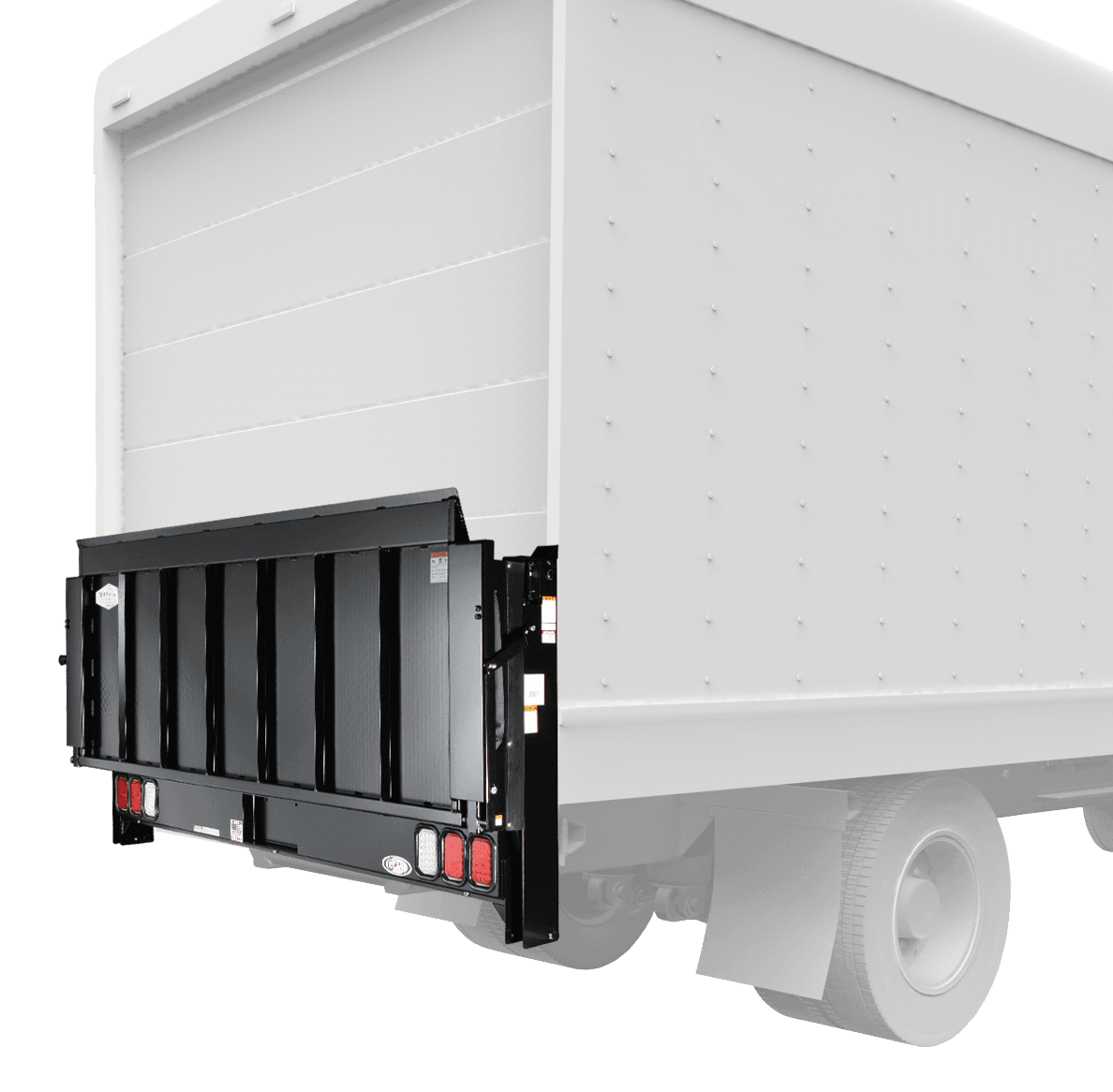

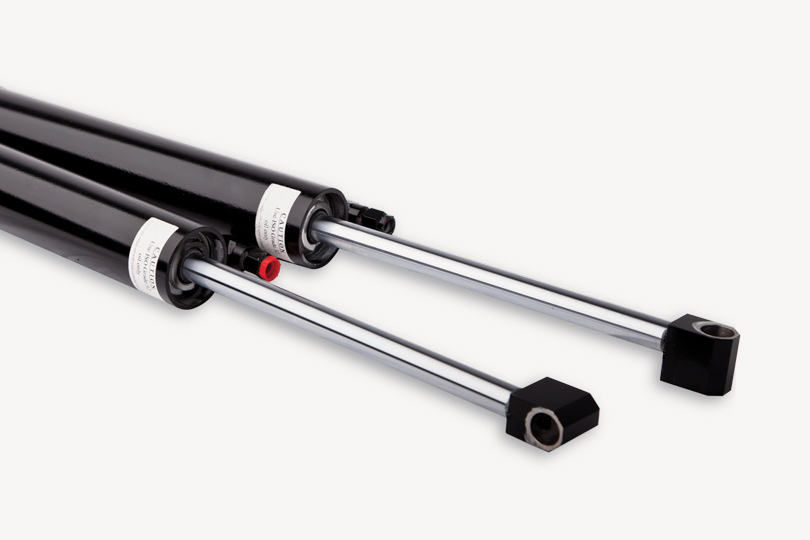

The Tommy Gate G2-Series 2200 is a 2,200 lb capacity tuckaway liftgate — the most widely specified liftgate for 16-foot to 26-foot box trucks in North American commercial fleets. Tommy Gate is the gold standard of liftgates: more delivery fleets, more appliance companies, more furniture distributors, and more Amazon DSP operators run Tommy Gate than any other brand. The G2 tuckaway design folds the platform up under the truck body when not in use, keeping the rear of the truck clean and maximizing dock clearance during loading. Platform size is 56" × 82" — full pallet width, large enough for an appliance box, and rated for 2,200 lbs distributed load. The dual hydraulic cylinder system provides synchronized, level raise and lower under eccentric loads (off-center loads are the norm in real delivery operations). 12V DC electric-hydraulic power unit draws from the truck's electrical system — no generator, no secondary battery required for occasional use. Optional maintenance-free dual-battery system for high-cycle fleet operations. DOT/FMVSS compliant. Fits box trucks from 12-foot to 26-foot bodies. Install time: 4–6 hours by a qualified truck body installer.
