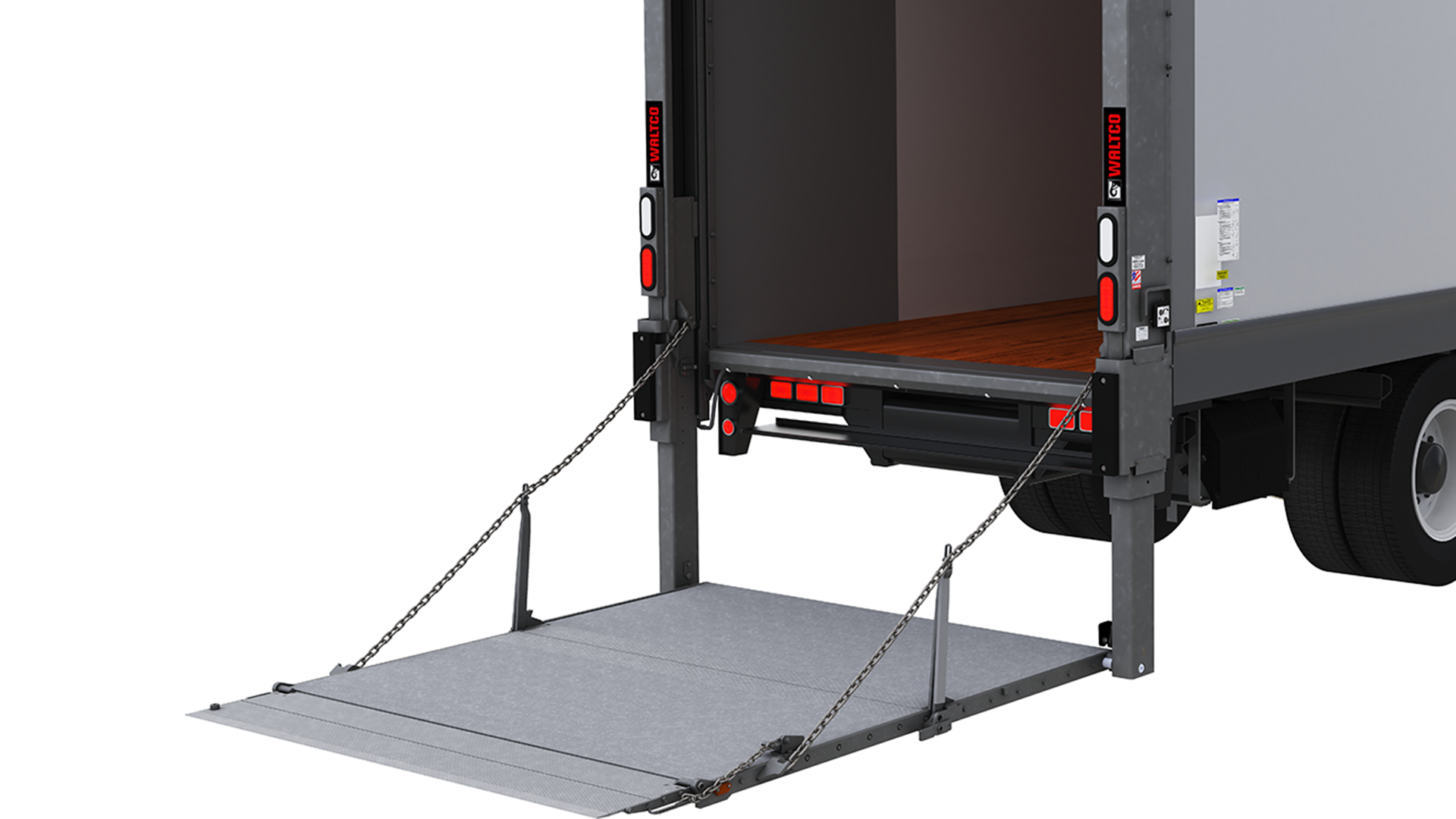

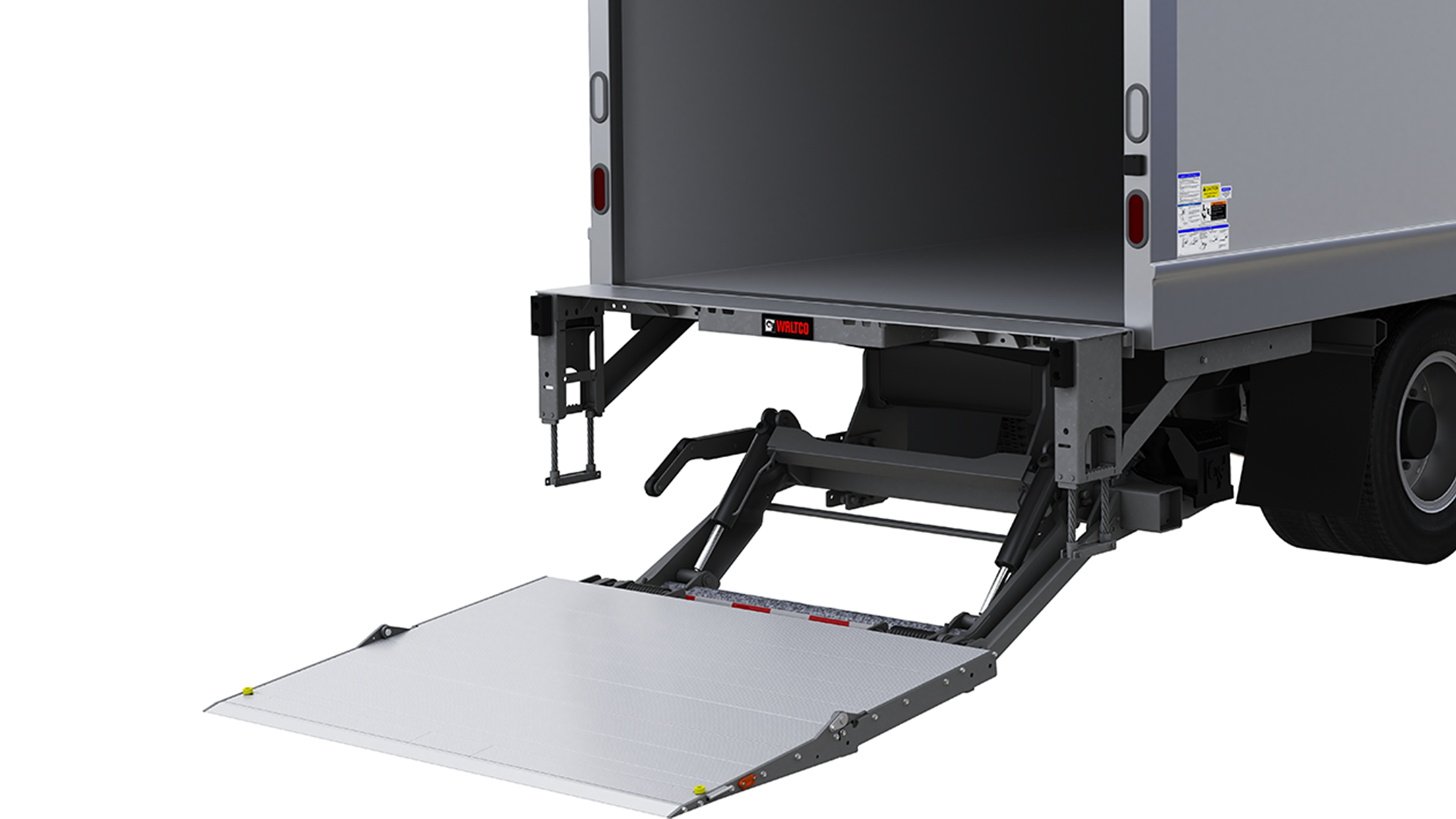

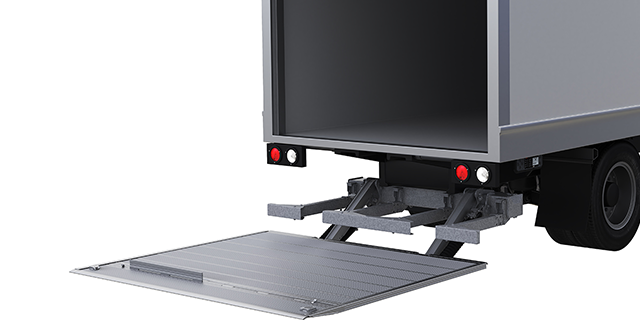

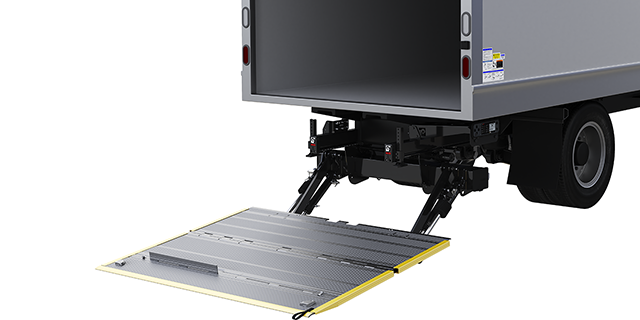

Waltco WCC-4400 Column Liftgate

The Waltco WCC-4400 is a 4,400 lb capacity column-type liftgate engineered for Class 6 and Class 7 straight trucks in the most demanding commercial delivery applications: beverage distribution, full-pallet grocery delivery, industrial supply, and any operation where the liftgate moves 2,000+ lb loads dozens of times per day. Waltco Lift Corporation is the heavy-duty liftgate specialist — their column-type liftgates dominate the beverage distribution industry where Coca-Cola, Pepsi, and regional distributors run column lifts because they handle the combination of weight (full pallet kegs, cases, and equipment) and cycle frequency (100+ cycles/day) that no tuck-under can sustain long-term. The column design uses two vertical steel guide columns to support the platform — the load path goes straight down into the columns and into the truck frame, not through cantilevered arms. This geometry is what allows the WCC-4400 to handle 4,400 lbs without platform deflection or arm fatigue. The 60" × 84" platform accommodates a full standard pallet plus operator. Platform travel is 0" to 60", covering the full height range of Class 6-7 truck body floors. The 12V DC hydraulic system uses a dedicated rear battery (included) — fully independent from the truck's main electrical system. Remote pendant control plus fixed rocker switch at the platform edge. Waltco builds column liftgates in Tallmadge, Ohio.
