Command UTV Side-by-Side Platform Lift 6000
Polaris RZR, Can-Am, Kawasaki — runs them all.
6,000 lb UTV/side-by-side lift, 120x76 inch platform. Handles full-size Polaris, Can-Am, Kawasaki with roll cages. Dual hydraulic cylinders.
- 6,000 lb rated capacity
- 120” x 76” platform — full-size side-by-side width
- Dual hydraulic cylinders with cable equalization
- Approach ramps handle 14” ground clearance
- 40-inch max working height
- 220V power unit — 30 second raise
- Removable service side rails
- Safety ratchet locks (anti-descent system)
✓ In Stock — Ships in 5-10 business days
| Capacity | 6,000 lbs |
| Warranty | 5 years structural, 2 years hydraulics |
| Rise Time | ~30 seconds (full) |
| Power Unit | 220V single-phase, 2 HP |
| Unit Weight | 1,100 lbs |
| Equalization | Dual cylinder + cable synchronized |
| Lifting Range | 10” to 40” |
| Platform Size | 120” x 76” |
| Max Vehicle Width | 76” (with mirrors) |

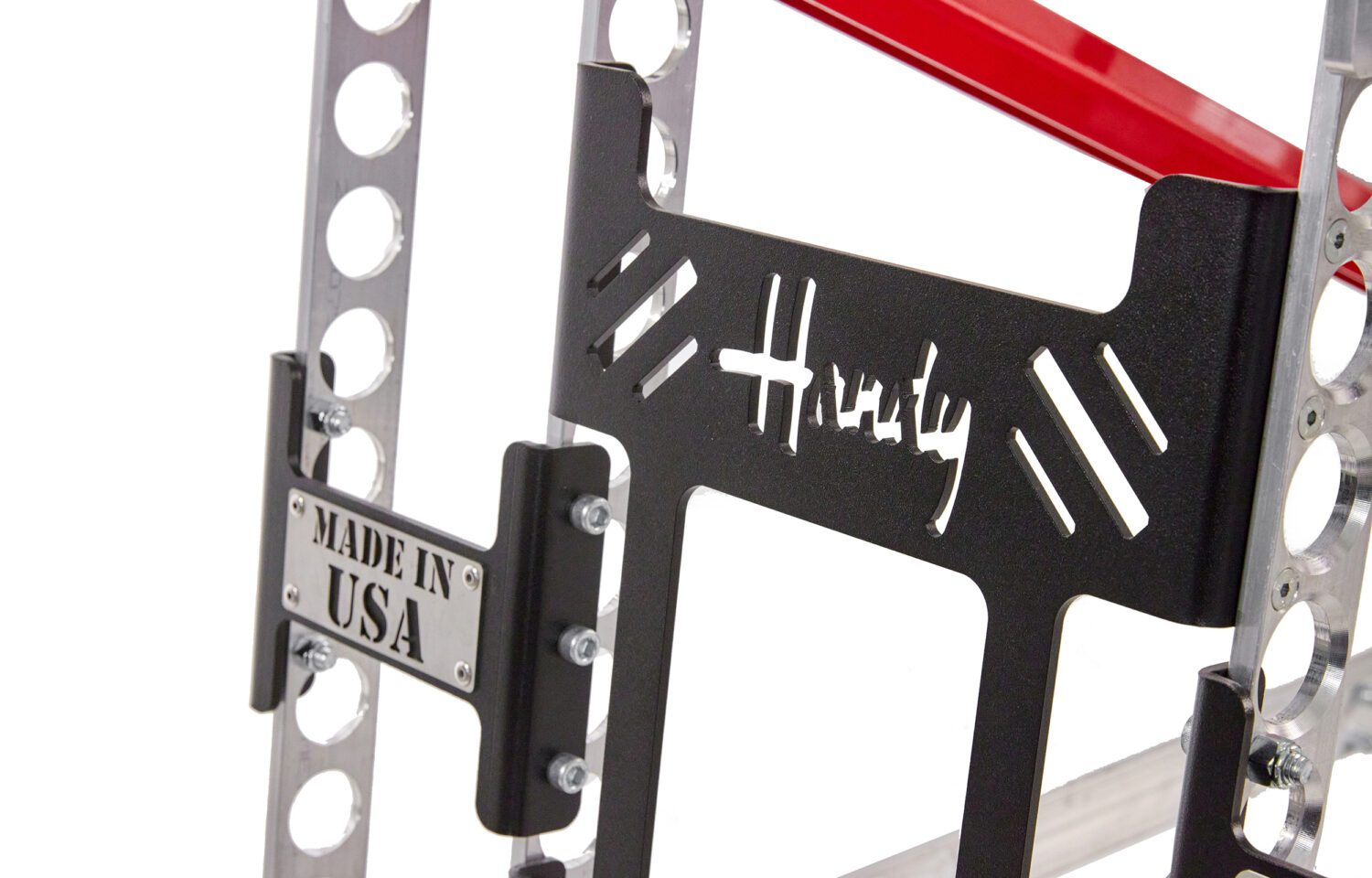

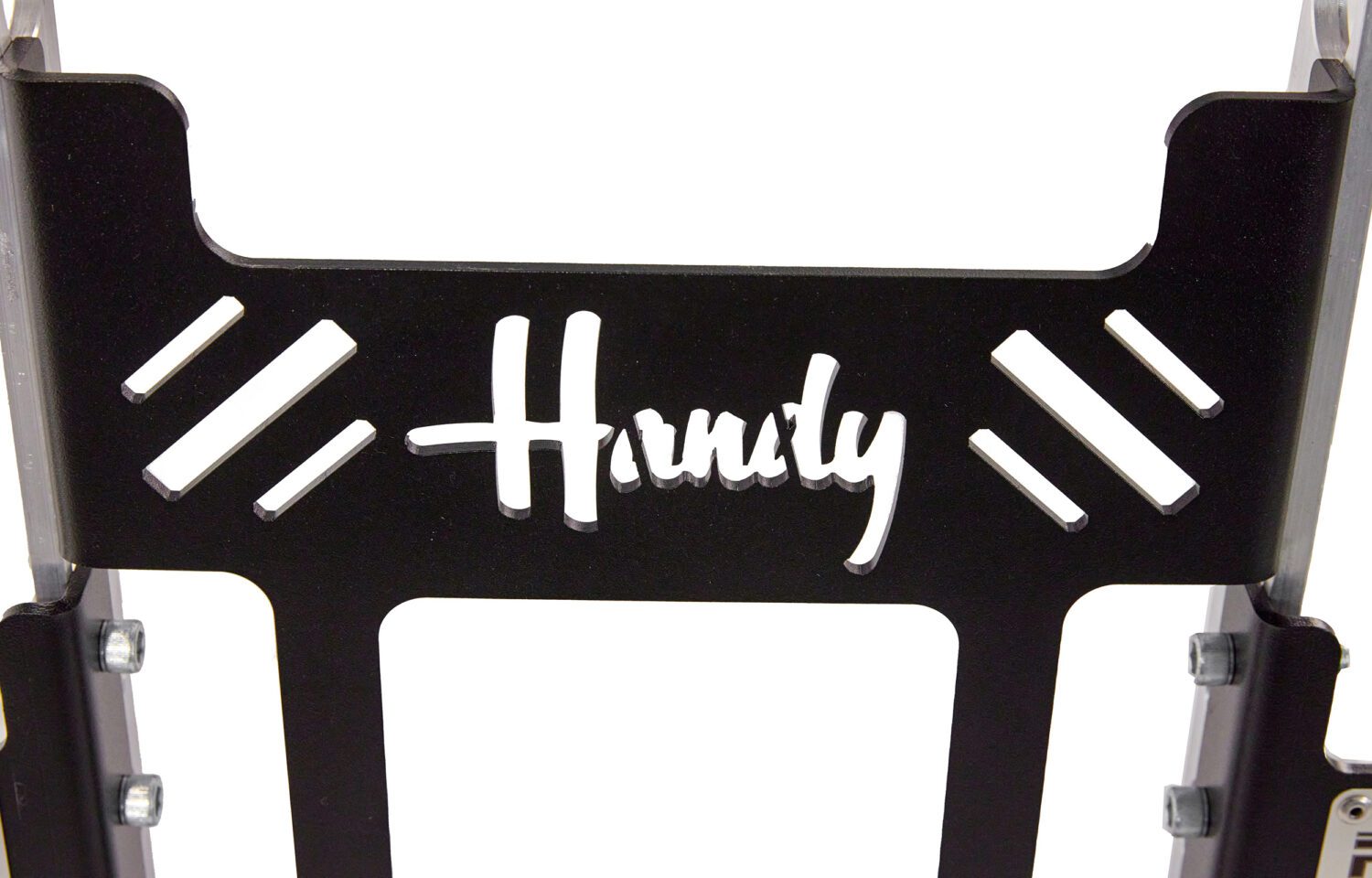

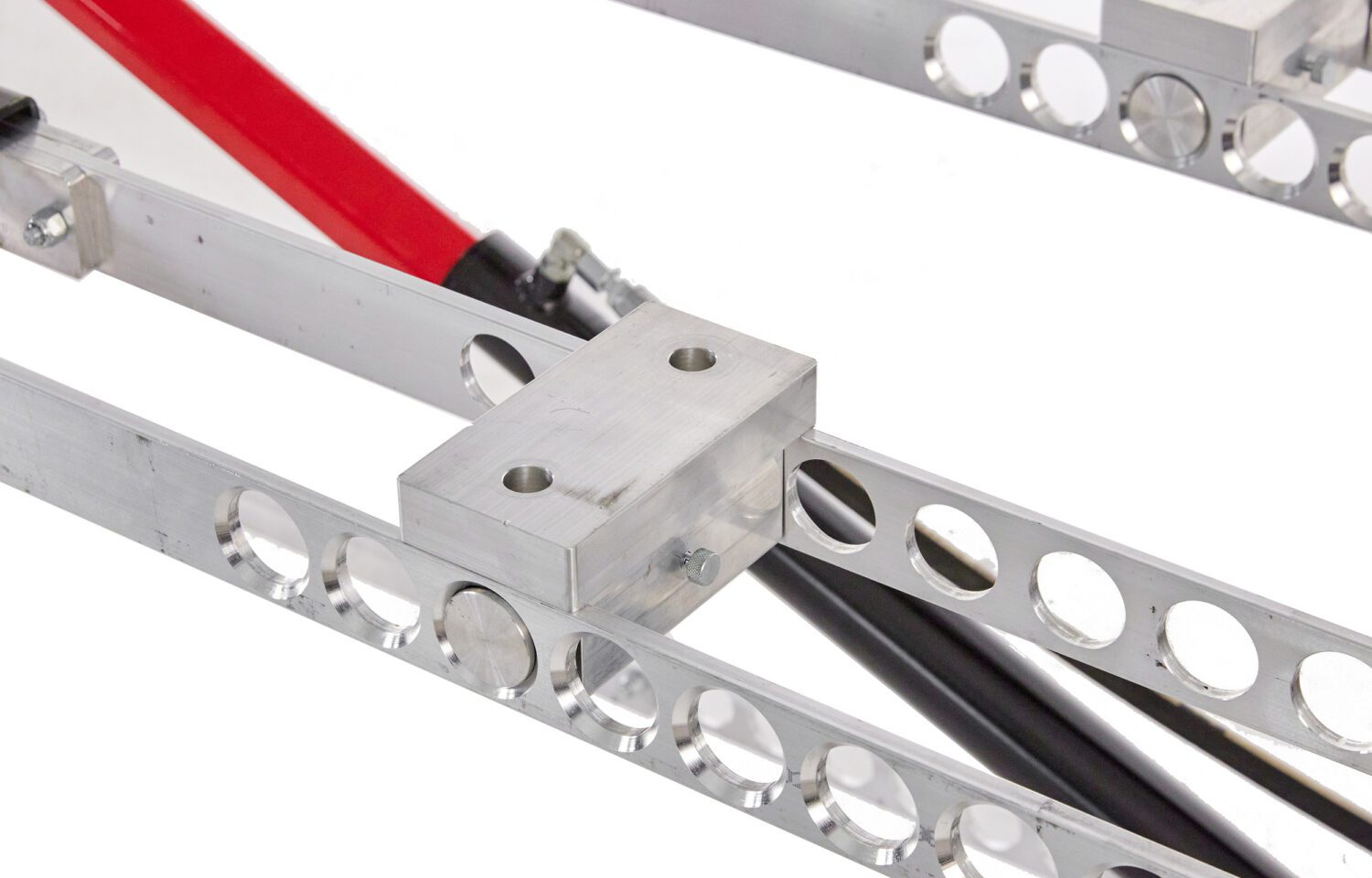

Multi-angle views of the Command UTV Side-by-Side Platform Lift 6000. Click any image to zoom.
See this class of lift in action. The video below shows installation, real-world operation, and the kind of shop this lift belongs in.
ATV and UTV platform lifts are wide, heavy-duty tables designed to accept a machine under its own power. Electric-hydraulic drive makes lifting multi-hundred-pound machines effortless.
Drive-On Loading
Ride the ATV/UTV up the integrated loading ramp onto the deck surface. The platform is wide enough for side-by-side tire tracks. Use the wheel stops to prevent roll-off before lifting.
Electric-Hydraulic Power
A 12V or 110V electric motor powers the hydraulic pump. The hand control (or rocker switch on frame) raises and lowers. Many models include a remote pendant for one-person operation.
Tie-Down Points
Heavy-duty D-ring anchor points are welded into the deck corners. Run cam straps over the frame rails or tow hooks before raising — UTVs can shift significantly at working height.
Safety Lock System
Multi-position mechanical locks engage automatically during ascent. Press the single-button lock release before lowering. Never rely on hydraulic pressure alone — always confirm locks are engaged when working under or around the machine.
⚙️ Automatic Safety Locks
Ratchet locks on each column engage automatically as the platform rises. A single-button lock release disengages all locks simultaneously for lowering — never crawl under the machine with locks not engaged.
🔒 Tie-Down System
Welded D-ring anchor points on all four deck corners accept cam buckle or ratchet straps. At 1,500–3,000+ lbs, an ATV or UTV shifted on a 36" high platform can be catastrophic — always strap it down.
⚡ Low-Voltage Safety
The electric pump runs on 110V but the control circuit is 12V for shock protection. If the control circuit detects a short or moisture intrusion, it cuts power to the pump before the high-voltage circuit is affected.
📐 Overload Cutoff
A hydraulic pressure switch cuts pump power if the load exceeds the rated capacity. The pump will not re-engage until the load is reduced — preventing cylinder damage and maintaining safe lifting geometry.
How does this compare?
Side-by-sides have become serious off-road machines with serious price tags. A $25,000 RZR XP Turbo deserves a proper lift. The dual-cylinder equalization on the Command is what separates it from single-post platforms that tip under the asymmetric weight of a loaded cab. The 76” platform width is the critical spec — check your vehicle’s width before ordering.
