Haulotte Star 10 Push-Around Mast Lift
European-built push-around man lift. Compact, lightweight, built for daily use.
Haulotte Star 10 push-around vertical mast lift. 32.8-ft platform height, twin-mast stability, 440 lb capacity, 31.5-inch width. European commercial-grade build quality.
- 32.8 ft (10 m) platform height (39 ft / 12 m working height)
- 440 lb (200 kg) single-person capacity
- Twin-mast design — superior stability vs. single-mast units
- 31.5-inch (800 mm) width — fits through commercial and fire-rated doors
- AC electric lift motor (110V converter included)
- Full-perimeter platform cage with self-closing gate and D-ring anchor
- Powder-coated steel construction — long-term durability
- Cold-weather startup package available
✓ In Stock — Ships in 5-10 business days
| Drive | Manual push |
| Model | Star 10 |
| Mast Type | Twin telescoping mast |
| Lift Power | 110V AC (converter) or 230V AC |
| Manufacturer | Haulotte Group |
| Overall Width | 31.5 inches (800 mm) |
| Platform Size | 31.5" × 35.4" (800 mm × 900 mm) |
| Certifications | CE EN 1570-1, ANSI/SAIA A92.3 (US config) |
| Machine Weight | 629 lbs (285 kg) |
| Working Height | 39.4 ft (12.0 m) |
| Platform Height | 32.8 ft (10.0 m) |
| Platform Capacity | 440 lbs (200 kg) |

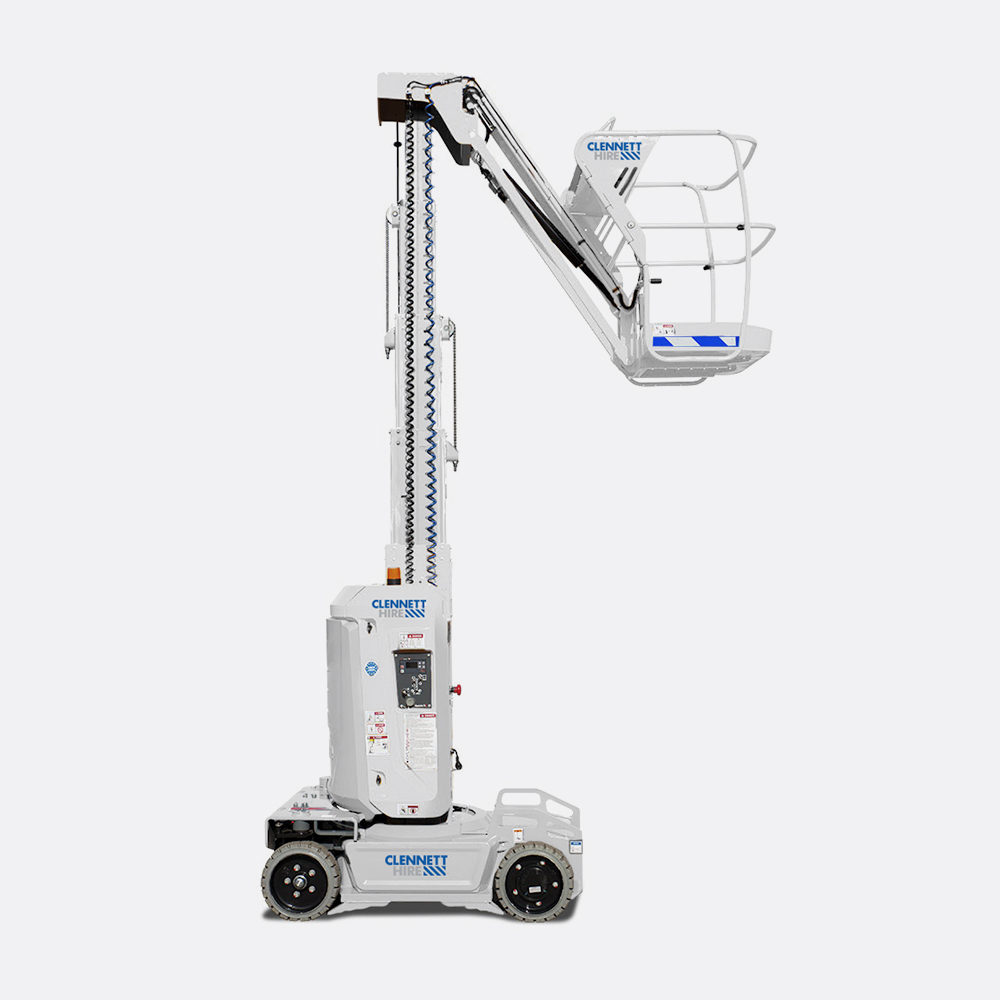

Multi-angle views of the Haulotte Star 10 Push-Around Mast Lift. Click any image to zoom.
See this class of lift in action. The video below shows installation, real-world operation, and the kind of shop this lift belongs in.
⚙️ Full-Cage Platform with D-Ring Anchor
Full-perimeter cage with self-closing positive-latch gate meets OSHA 1910.29 and ANSI/SAIA A92.3 fall protection requirements. Operators must wear a full-body harness with a lanyard connected to the D-ring fall arrest anchor at all times while elevated — the anchor is rated for the full OSHA 5,000 lb fall arrest load.
🔒 Tilt / Slope Interlock
An electronic inclinometer prevents mast extension on slopes beyond the rated threshold. If the machine moves onto an unlevel surface while elevated, all motion halts immediately. On push-around units, the interlock also prevents outrigger-free ascent — the machine cannot be "tilted up" by lifting a foot.
📐 Mechanical Outrigger Interlock
All four outrigger feet must confirm floor contact before the mast will ascend above the low-profile travel position. This interlock is implemented in the hydraulic circuit on most models — not software — making it physically impossible to bypass without mechanical modification.
🛡️ Emergency Descent System
A gravity-fed or mechanical emergency descent system lowers the mast to ground level without electrical power. The emergency descent valve is accessible from outside the cage and clearly labeled. All personnel lift operators must know the location and operation of the emergency descent before use.
How does this compare?
The Haulotte Star 10 reaches 10 meters — meaningfully higher than most North American push-around units (which top out at 25 feet/7.6m). The twin-mast design is a genuine engineering differentiator: the Star series is noticeably stiffer at full extension than single-mast competitors, which matters for precision work like hanging ceilings, installing ventilation grilles, or electrical panelboard work where platform stability directly affects work quality. For facilities that have dealt with platform sway on tall single-mast units, the Star 10 is the upgrade.
