Vestil CART-1000-LD Manual Hydraulic Lift Table Cart
Lift, roll, position. One person. No power needed. The shop floor workhorse.
1,100 lb mobile manual hydraulic lift cart. 21×42-inch platform, 8.5 to 36 inches height, foot-pedal pump, variable-speed release, 24-inch width. No power required.
- 1,100 lb rated capacity
- 21" × 42" platform with perimeter edge lip
- 8.5 to 36 inches height range — foot-pedal hydraulic
- Hands-free pumping — both hands stay on load
- Variable-speed foot-actuated release valve
- 24-inch overall width — fits standard doorways
- 2 swivel + 2 rigid casters — straight tracking when loaded
- No power required — works anywhere on shop floor
✓ In Stock — Ships in 5-10 business days
| Pump | Foot-pedal hydraulic |
| Model | CART-1000-LD |
| Casters | 2 swivel (front) + 2 rigid (rear), 5-inch diameter |
| Unit Weight | 207 lbs (94 kg) |
| Manufacturer | Vestil Manufacturing |
| Overall Width | 24 inches |
| Platform Size | 21" W × 42" L |
| Raised Height | 36 inches |
| Certifications | ANSI/ASME MH29.1 |
| Lowered Height | 8.5 inches |
| Rated Capacity | 1,100 lbs (499 kg) |
| Vertical Travel | 27.5 inches |
| Lowering Control | Foot-actuated release valve (variable speed) |

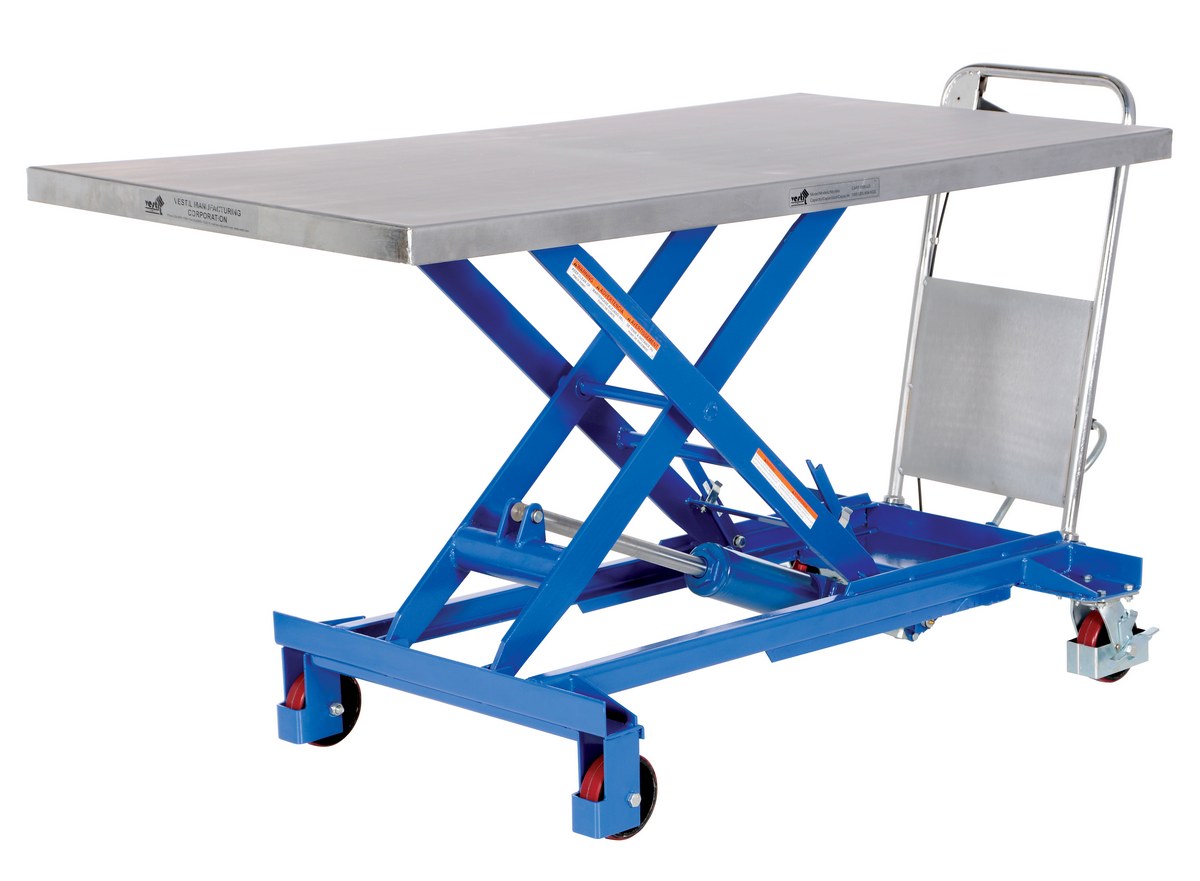

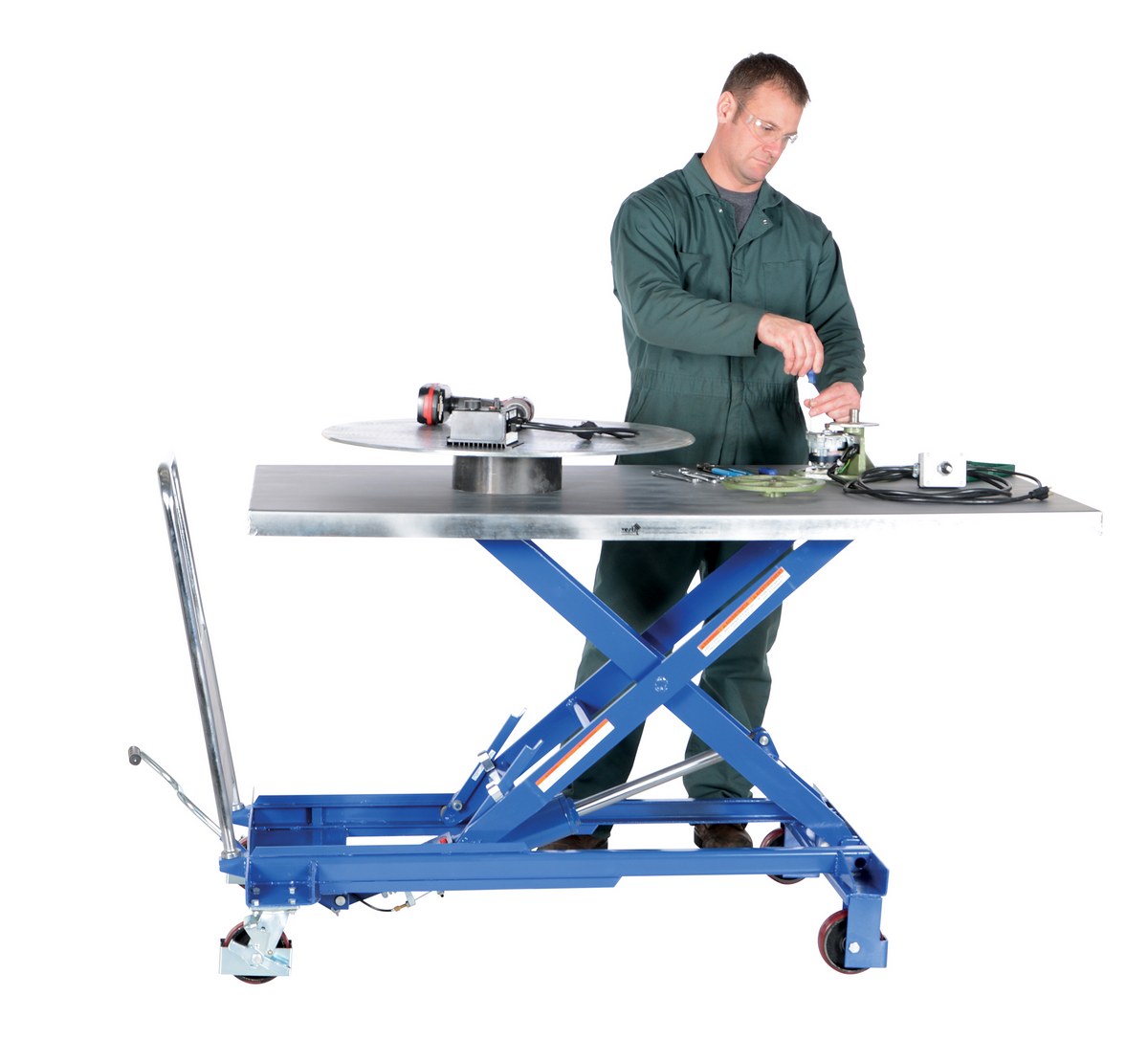

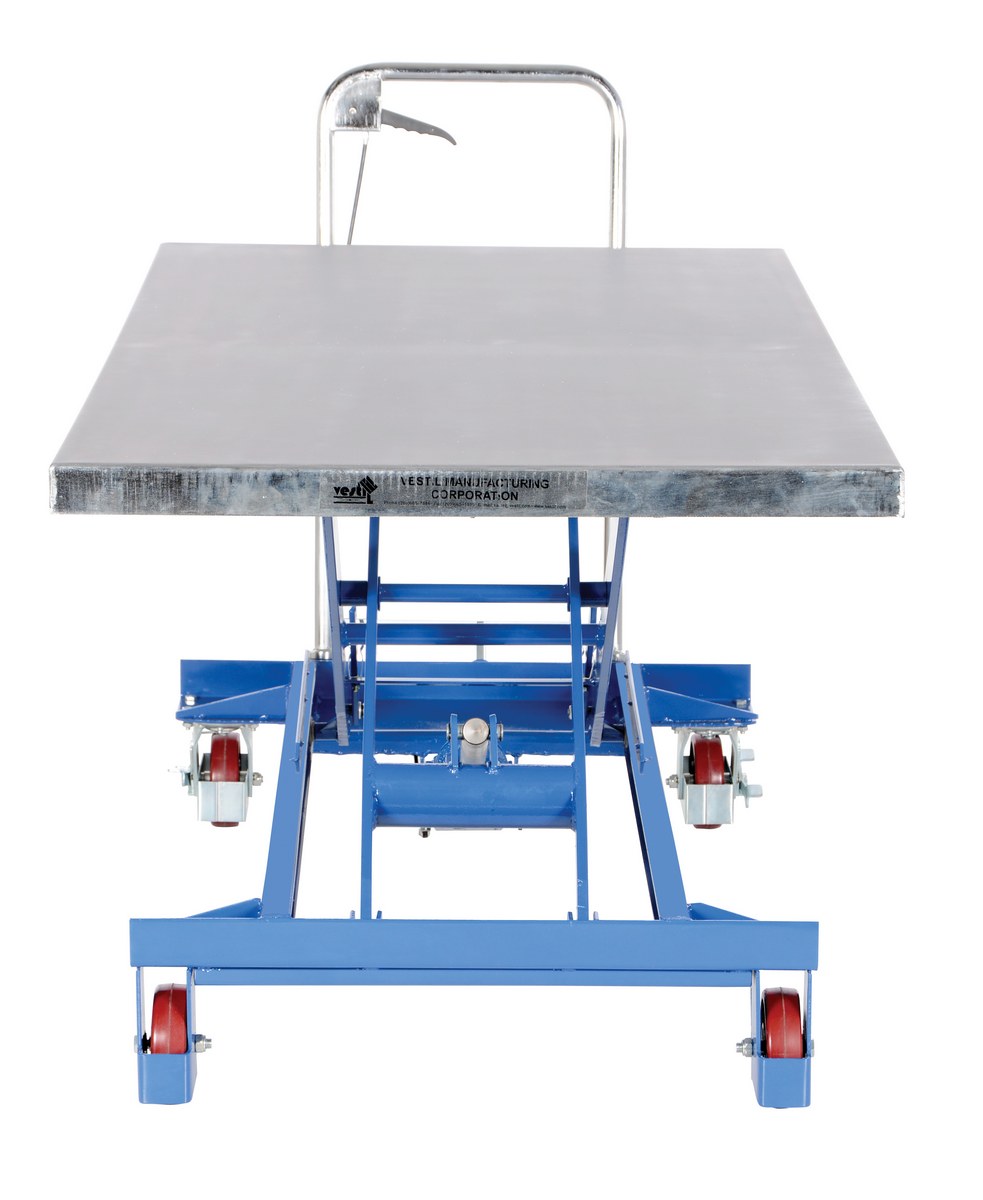

Multi-angle views of the Vestil CART-1000-LD Manual Hydraulic Lift Table Cart. Click any image to zoom.
See this class of lift in action. The video below shows installation, real-world operation, and the kind of shop this lift belongs in.
Hydraulic lift tables use a scissor mechanism powered by electric or manual hydraulics to raise a work platform to ergonomic working height. Electric models use push-button controls; manual models use a foot-pedal pump. Both types hold height via a self-locking internal valve.
🔌 Power & Control
Electric models: plug into the rated power supply (110V single-phase or 208-240V 3-phase as specified). Press and hold the "Up" button to raise; press "Down" to lower at controlled speed. Manual models: pump the foot pedal to raise, rotate the release valve to lower.
📐 Height Setting
For ergonomic workstations, set the platform height so the work surface is at elbow height when standing with arms relaxed at sides. This is the NIOSH-recommended working height for minimizing back and shoulder strain. For seated work, set the platform 1–2 inches above the seated elbow height.
🔒 Self-Locking Valve
The internal counterbalance valve holds the platform at any set height even if power is lost. The platform will not creep down under static load. To lower, you must actively press the lower button (electric) or open the release valve (manual) — there is no gravity-descent bypass.
⚠️ Safety Toe Guard
On units with safety toe guards: the platform stops descending immediately if the toe guard contacts an obstruction. Clear the area under the platform before lowering. Regularly inspect the toe guard switch/bar to confirm it's functioning — test it monthly by placing a soft object under the platform and pressing lower.
⚙️ ANSI/ASME MH29.1 Standard
Industrial lift tables must meet ANSI/ASME MH29.1 (Safety Standard for Low Lift and High Lift Trucks) or the equivalent lift table standard. This covers load ratings, hydraulic system safety factors, platform stability, and toe guard requirements. Compliance is mandatory for OSHA-regulated workplaces.
🔒 Self-Locking Counterbalance Valve
The internal counterbalance valve prevents platform descent under static load even if the hydraulic pump or power fails. This is a critical safety device — verify it is present and functional by raising the table, shutting off power, and confirming the platform holds position. A table that creeps down when power is off has a failed valve and must be taken out of service.
🛡️ Safety Toe Guard
OSHA 29 CFR 1910.212 requires mechanical safeguarding to prevent workers from placing extremities under descending pinch points. The safety toe guard — a spring-loaded bar around the platform perimeter — automatically stops descent when it contacts an obstruction. Test monthly. If the toe guard does not stop the table when activated, the safety circuit must be repaired before the table is returned to service.
📐 OSHA Ergonomic Compliance
OSHA's ergonomics guidelines (1990 proposed standard and the NIOSH lifting equation) recommend adjustable workstation height as the primary intervention for reducing musculoskeletal injuries from fixed-height work. Lift tables used as ergonomic workstations should be periodically adjusted to each operator's elbow height — this is the OSHA-recommended measurement for standing work surface height.
How does this compare?
The CART-1000-LD solves the problem of moving loads between heights in facilities without fixed lift table stations at every workpoint. For manufacturing shops with multiple workstations at different heights, the mobile cart eliminates the two-person lift that OSHA flags. The 24-inch width is the critical spec — it fits through machine rows and around equipment. For loads over 1,100 lbs or platforms larger than 21 × 42, step up to the CART-2000 series or a fixed electric lift table.
