Vestil EHLT-2448-2-43 Electric Hydraulic Lift Table
The OSHA compliance answer for assembly lines and shipping docks. 2,000 lbs. Electric.
2,000 lb electric hydraulic lift table. 24×48-inch platform, 9.5 to 43 inches height, push-button electric control, self-locking valve, safety toe guard. OSHA ergonomic compliance.
- 2,000 lb (1 ton) rated capacity
- 24" × 48" work platform
- 9.5 to 43 inches height range — push-button electric control
- Self-locking internal valve — holds at any height if power lost
- Cross-linked hardened steel scissor mechanism — lateral stability
- Safety toe guard on all four sides — auto-stop on obstruction
- 110V / 1-phase power — standard outlet
- OSHA ergonomic compliance — reduces MSI risk at workstations
✓ In Stock — Ships in 5-10 business days
| Model | EHLT-2448-2-43 |
| Power | 110V AC, 1-phase, 60 Hz, 6-ft cord |
| Safety | Self-locking valve + 4-side toe guard |
| Control | Push-button electric up/down |
| Unit Weight | 415 lbs (188 kg) |
| Manufacturer | Vestil Manufacturing |
| Platform Size | 24" W × 48" L (0.61 m × 1.22 m) |
| Raised Height | 43 inches (1,092 mm) |
| Certifications | ANSI/ASME MH29.1, UL/CE listed |
| Lowered Height | 9.5 inches (241 mm) |
| Rated Capacity | 2,000 lbs (907 kg) |
| Vertical Travel | 33.5 inches (851 mm) |
| Scissor Mechanism | Cross-linked hardened steel arms |

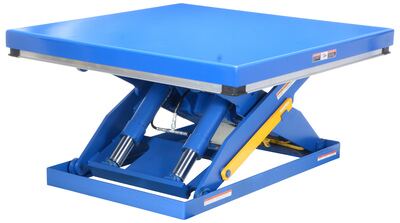

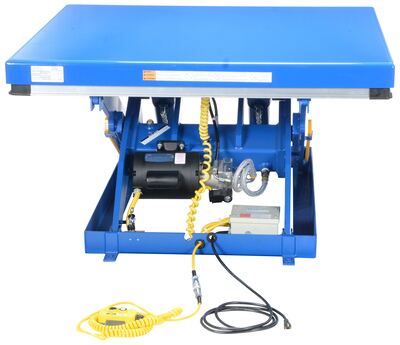

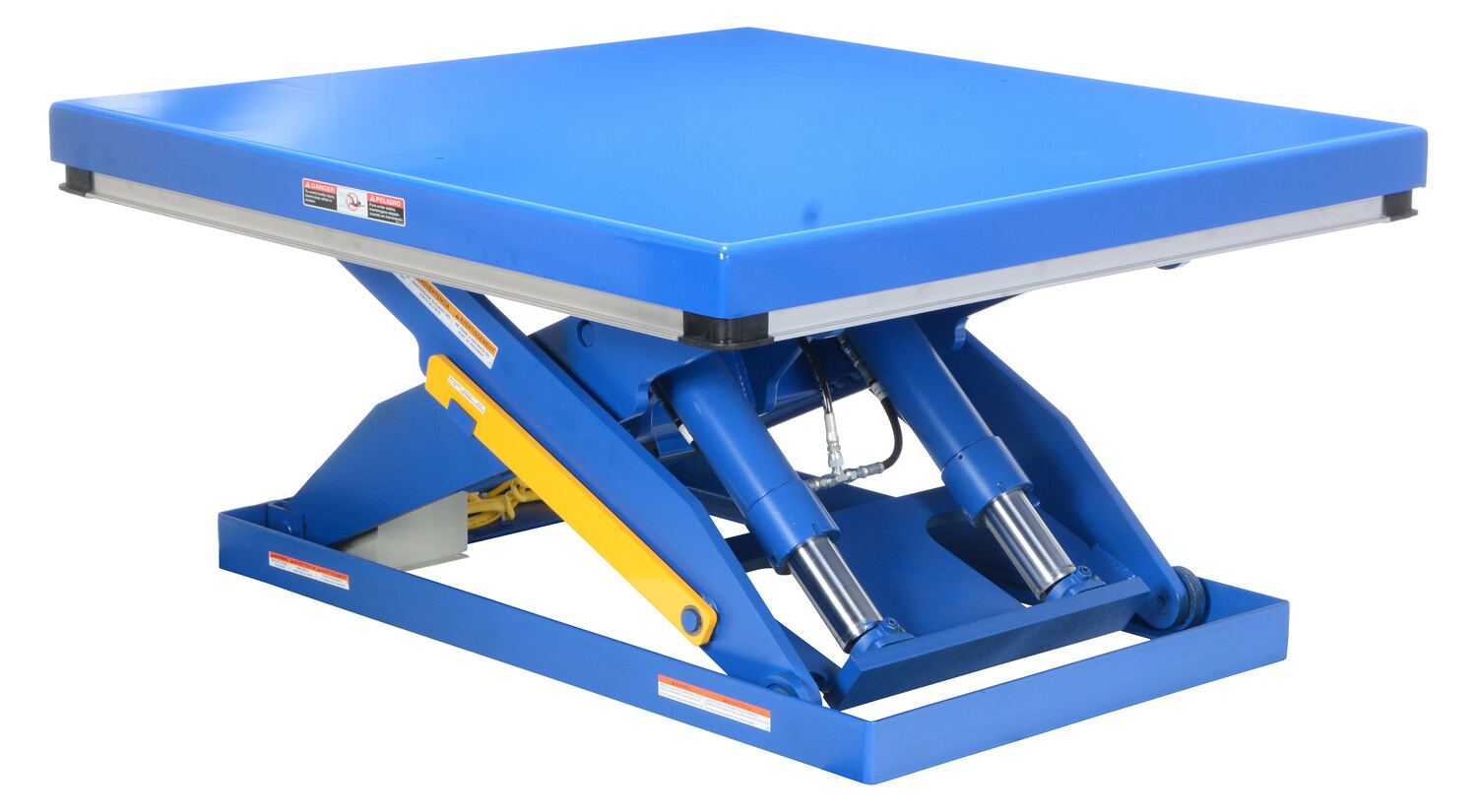

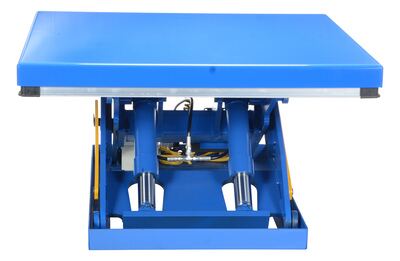

Multi-angle views of the Vestil EHLT-2448-2-43 Electric Hydraulic Lift Table. Click any image to zoom.
See this class of lift in action. The video below shows installation, real-world operation, and the kind of shop this lift belongs in.
Hydraulic lift tables use a scissor mechanism powered by electric or manual hydraulics to raise a work platform to ergonomic working height. Electric models use push-button controls; manual models use a foot-pedal pump. Both types hold height via a self-locking internal valve.
🔌 Power & Control
Electric models: plug into the rated power supply (110V single-phase or 208-240V 3-phase as specified). Press and hold the "Up" button to raise; press "Down" to lower at controlled speed. Manual models: pump the foot pedal to raise, rotate the release valve to lower.
📐 Height Setting
For ergonomic workstations, set the platform height so the work surface is at elbow height when standing with arms relaxed at sides. This is the NIOSH-recommended working height for minimizing back and shoulder strain. For seated work, set the platform 1–2 inches above the seated elbow height.
🔒 Self-Locking Valve
The internal counterbalance valve holds the platform at any set height even if power is lost. The platform will not creep down under static load. To lower, you must actively press the lower button (electric) or open the release valve (manual) — there is no gravity-descent bypass.
⚠️ Safety Toe Guard
On units with safety toe guards: the platform stops descending immediately if the toe guard contacts an obstruction. Clear the area under the platform before lowering. Regularly inspect the toe guard switch/bar to confirm it's functioning — test it monthly by placing a soft object under the platform and pressing lower.
⚙️ ANSI/ASME MH29.1 Standard
Industrial lift tables must meet ANSI/ASME MH29.1 (Safety Standard for Low Lift and High Lift Trucks) or the equivalent lift table standard. This covers load ratings, hydraulic system safety factors, platform stability, and toe guard requirements. Compliance is mandatory for OSHA-regulated workplaces.
🔒 Self-Locking Counterbalance Valve
The internal counterbalance valve prevents platform descent under static load even if the hydraulic pump or power fails. This is a critical safety device — verify it is present and functional by raising the table, shutting off power, and confirming the platform holds position. A table that creeps down when power is off has a failed valve and must be taken out of service.
🛡️ Safety Toe Guard
OSHA 29 CFR 1910.212 requires mechanical safeguarding to prevent workers from placing extremities under descending pinch points. The safety toe guard — a spring-loaded bar around the platform perimeter — automatically stops descent when it contacts an obstruction. Test monthly. If the toe guard does not stop the table when activated, the safety circuit must be repaired before the table is returned to service.
📐 OSHA Ergonomic Compliance
OSHA's ergonomics guidelines (1990 proposed standard and the NIOSH lifting equation) recommend adjustable workstation height as the primary intervention for reducing musculoskeletal injuries from fixed-height work. Lift tables used as ergonomic workstations should be periodically adjusted to each operator's elbow height — this is the OSHA-recommended measurement for standing work surface height.
How does this compare?
The EHLT-2448 vs. manual hydraulic alternatives: the electric pump eliminates the operator fatigue that accumulates on manual models after 20+ daily adjustments. For workstations where operators adjust height 10–30 times per shift (common in light assembly), the electric pump pays for itself in reduced operator fatigue within weeks. The 24 × 48 platform is the standard size for most assembly and packaging workstations. For heavier loads (3,000–6,000 lbs), look at the EHLT heavy-duty series. For larger platforms (30 × 60 or 36 × 72), Vestil offers custom sizes at lead time.
